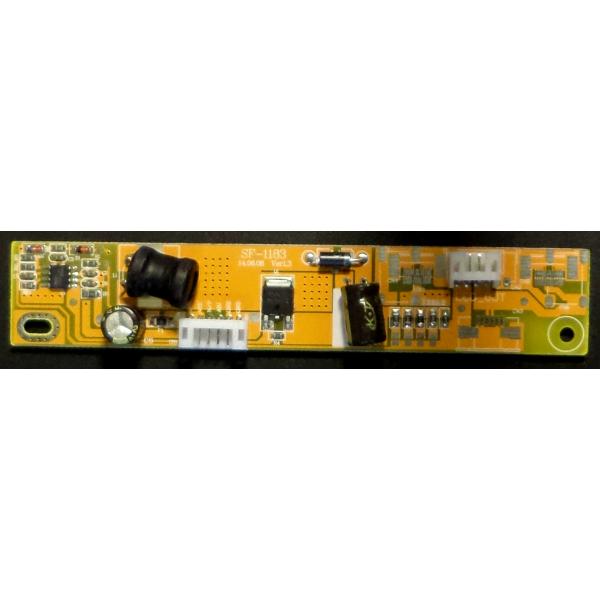

Инвертор (драйвер) SF-1183 для LED

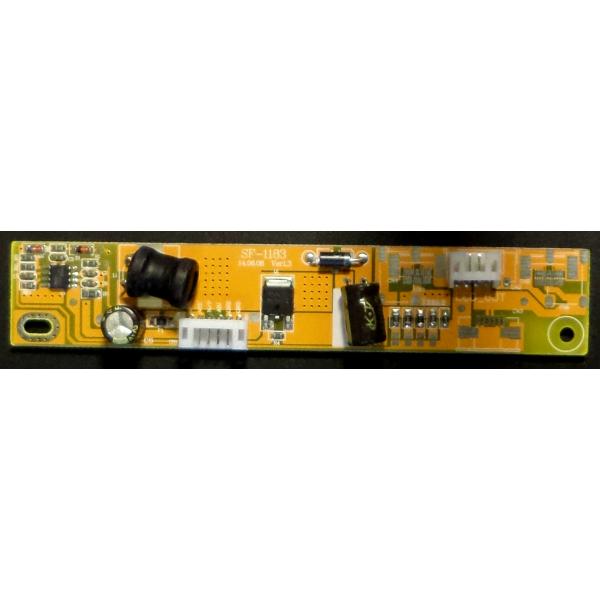

Инвертор (драйвер) SF-1183 для LED
Инвертор (драйвер) SF-1183 для LED

Инвертор (драйвер) SF-1183 для LED no-brand 2df8f0f7-c59d-11e4-b

400 руб.

1. General Description

This DC-DC LED Blacklight driver was developed for LED backlight system



2.  Features

High performance, low consumption

Wide Dimming Range

LED constant current drive

OVP Protection



3.  Application

The LED backlight driver is specially designed for LCD display

(i.e. LCD monitor, LCD TV?NB etc.) /



4.  Suitable load

LCD panel—MT190AW02



5. Input Electrical Characteristics

No.

Item

Symbol

Min

Type

Max

Unit

1

Input Voltage

Vin

7

12

22

V

2

Input Current

Iin

----

0.67

1.3

A

3

Input Power

Pin

----

8.04

15

W

4

Brightness Voltage

Vadj

0

----

5

V

5

Control Voltage

Enable  Von=1.2---5.0V  Disable Voff=0---0.8V



6. Pin assignments

Input connector

Pin No.

Symbol

Description

Values

1?2

VCC

Supply voltage

7---22V

3

ON/OFF

ON/OFF

Von =1.2--5.0V  Voff=0-0.8V

4

Vadj

Dimming control

MAX=0V   MIN=5V

5?6

GND

Ground

0V
